Some possible Output - Devices

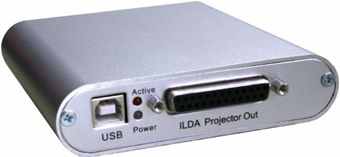

Easylase LC
For Beginners and 1-Projector Setupss incl. Donglefunction of "Dynamics nano"

- Scansped: 50 Kpps
- Jitter-Free Output, 32Bit-Microcontroller newest Generation
- X/Y 12 Bit Resolution
- 4 Farben (3 + Intensity) with 12 Bit Resolution
- Active Shutterpin
- DMX in/out on  ILDA - Plug


Easylase II
Our Allrounder with high Scanspeed and 6 Colorchannels

- Scansped: > 100 Kpps
- Jitter-Free Output, 32Bit-Microcontroller newest Generation
- X/Y 12 Bit Resolution
- 6 Colors (5 + Intensity) with 12 Bit Resolution
- Active Shutterpin
- DMX in/out on Board
- optional DMX on XLR Plugs, also optinal incl. optical Isolation
- 8 TTL-Outputs on Board

Alle Card incl. Drivers for 32/64 Bit Version of Windows (TM )
XP, Vista, Win7 and Win7
Das Flagschiff...Schluss mit ILDA Kabeln.
Steuern Sie Ihre Laserprojektoren per LAN !!

- 16 Bit X/Y
- 8 Bit R/G/B/C/M/Y und Intensity
- 32 MB Ram
- IEEE 802.6u 100Base TX Full Duplex TCP/IP und UDP Protokoll
- Max. Framesize 16.000 Points
- 200 Kpps Jitter-Free X/Y Output
- 16 Bit TTL Out ( 3.3V )
- DMX incl. optical Isolation
- IP Adress changed using DIP-Switch or Webserver
- unterstütz 6-Farb Betrieb

Configuration using  Webinterface !!
Netlase

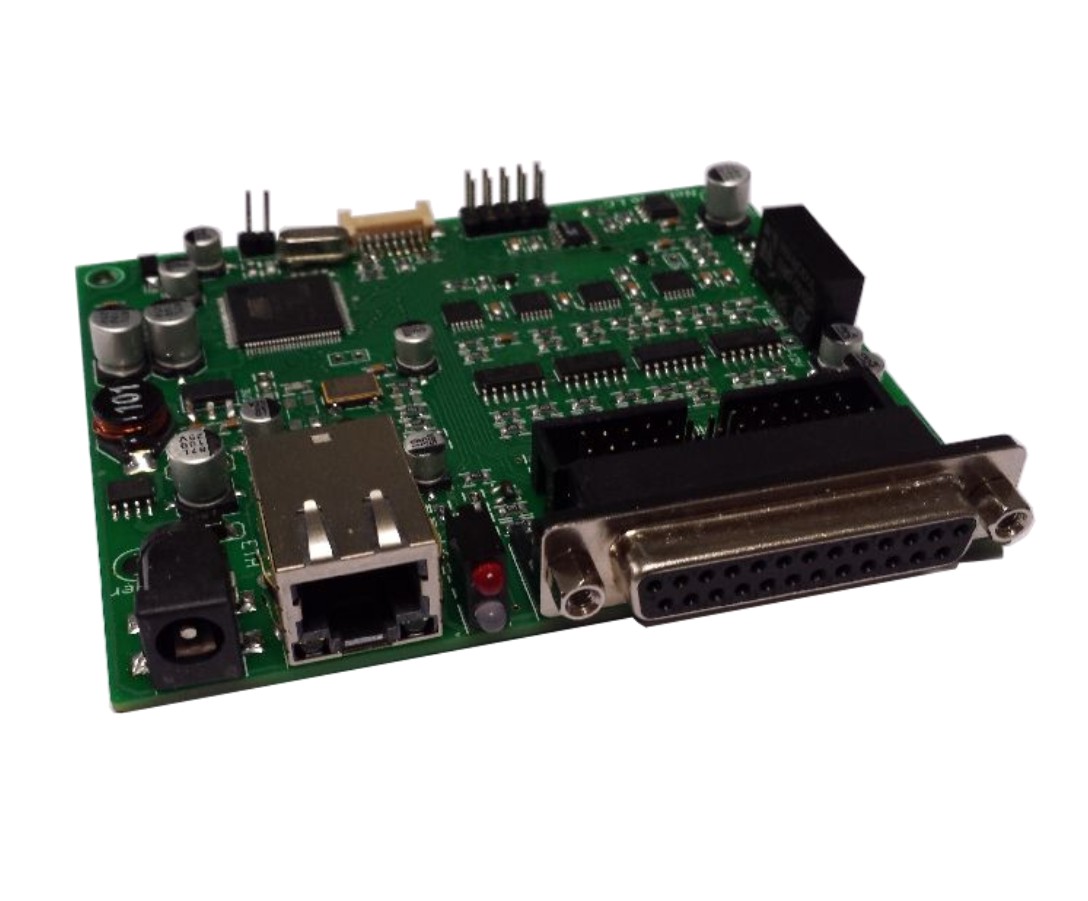

Netlase LC
- 12 Bit X/Y
- 6 Colors 12 Bit R/G/B/C/M/ (Y/ Intensity)
- IEEE 802.6u 100Base TX Full Duplex TCP/IP and UDP Protokoll
- 50Kpps Jitter-Free Output
- DMX 512 in/out, optional optisch isoliert (by Adapter / in Housing / as Option)
- DHCP or  fixed IP, configuration by Webinterface
- 6-Color support with Dynamics
- Powersupply: 8-24V DC, max. 350mA
- Softwareupdates by Webinterface
- OEM Card withoute 25pol Sub-D
- Can be used with Dynamics, HE-Laserscan und MIII
